Small Force Dynamic Test Bench
Force (1 axis), Displacement (1 axis)
Test types:
Uniaxial extension, Uniaxial compression, Strip extension, Unconfined compression, Confined compression, Dynamic mechanical testing
FIBEr
Model: Custom build
Manufactuerer: TA Instruments & FIBEr
About

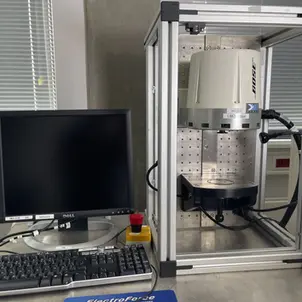

The LM1 TestBench allows uniaxial compression and tension and is equipped with a 200 N linear motor. An in-house built frame mounted on a configurable base plate allows vertical and horizontal testing for specimens of all sizes.
Gallery
Specifications
Force capacity | Peak dynamic ± 200 N |
Frequency | Max. 100Hz |
Max. velocity | 3.2 m/s |
Max. displacement stroke | ±1/4” |
Fluid chamber | room temperature |
Load cells | 225 N and 2.5 N,precision: 0.5 % of full scale |
Grips | 3 pt bend fixtures / Compression platens / Tension grips / Indenter |
Year of acquisition | 2006 |
Application Examples
Publications
