About

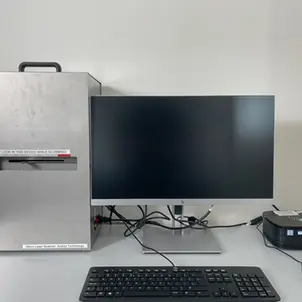

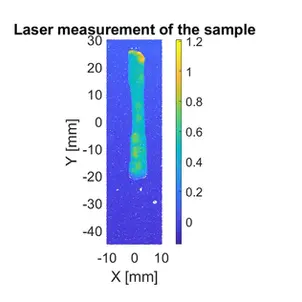

The micro laser scanner measures the dimensions of both soft and hard tissue samples. The machine is developed in house in collaboration with Acacia Technology and is equipped with a line laser and actuator to accurately and quickly determine the dimensions of the sample. The scan results in a greyscale intensity image and a point cloud of the sample. This point cloud represents the surface of the sample with a spatial resolution of 0.05 mm in the x and y direction and a resolution of 0.03 mm in the z-direction.
Gallery
Specifications
Sample size | up to 20x20x80mm |
Laser | Gocator Line Profile Sensor (2120) |
Resolution in X-Y direction | 0.05 mm |
Resolution in Z direction | 0.03 mm |
Scanning time | 10s |
Year of acquisition | 2020 |
Funding | KU Leuven internal funding |
Application Examples
Compatible With
Publications
